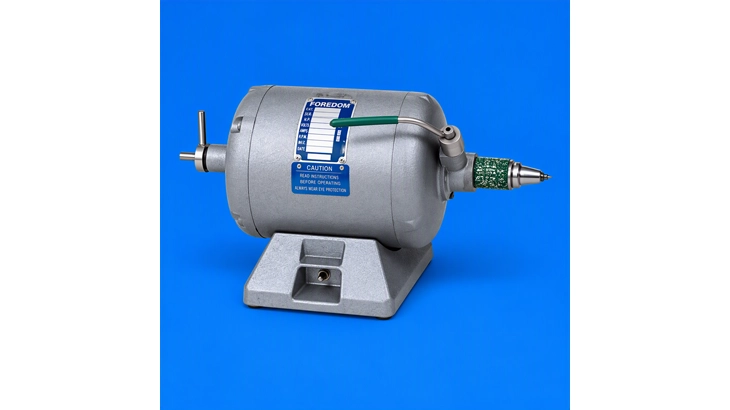

Lathe 2SP 1/3 HP with Wells Quick Chuck

A Baldor dental polishing lathe paired with a quick-change chuck (commonly the Wells Super Quick Chuck) lets operators swap burrs and mandrels while the motor runs.

Key Features and Specifications:

• Performance at 115 V, 60 Hz, 0.33 hp

• Typical performance; not guaranteed values.

• Full Load Torque 0 LB-FT; No-Load Current 0 A; Line-Line Res. @ 25° C 2.2367 Ohms A Ph / 13.494 Ohms B Ph; Temp. Rise @ Rated Load; Temp. Rise @ S.F. Load; Start Configuration DOL; Break-Down Torque 2.54 LB-FT; Pull-Up Torque 0.75 LB-FT; Locked-Rotor Torque 1 LB-FT; Starting Current 24 A

• 28L 2/4P POLISHING LATHE MOTOR

Load Characteristics

• Rated Load    0%    25%    50%    75%    100%    125%    150%    S.F.

• Power Factor    32.0    60.0    74.0    83.0    87.0    89.0    90.0    0.0

• Efficiency    0.0    52.0    63.4    66.1    65.1    61.5    53.5    0.0

• Speed (RPM)    3,589    3,558    3,524    3,480    3,429    3,364    3,227    0

• Line Amps    1.51    1.82    2.30    2.98    3.77    4.72    6.24    0.00

• Item is in the box, never used
