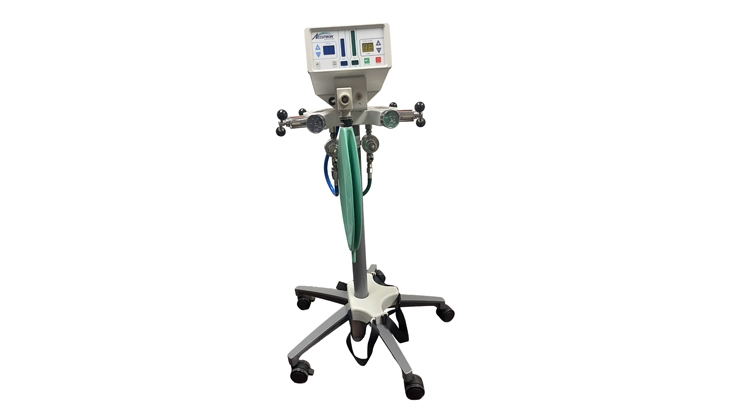

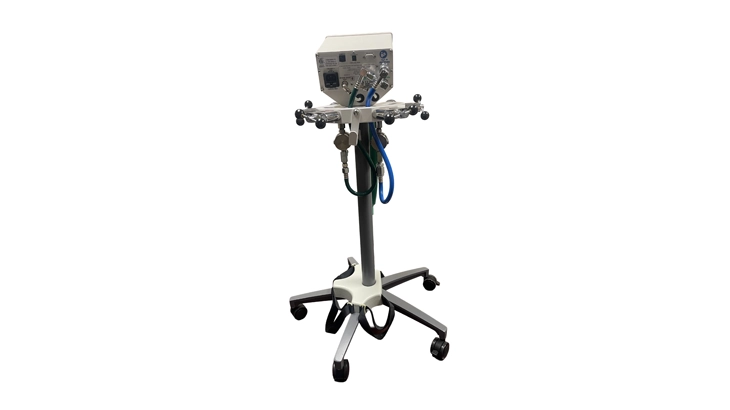

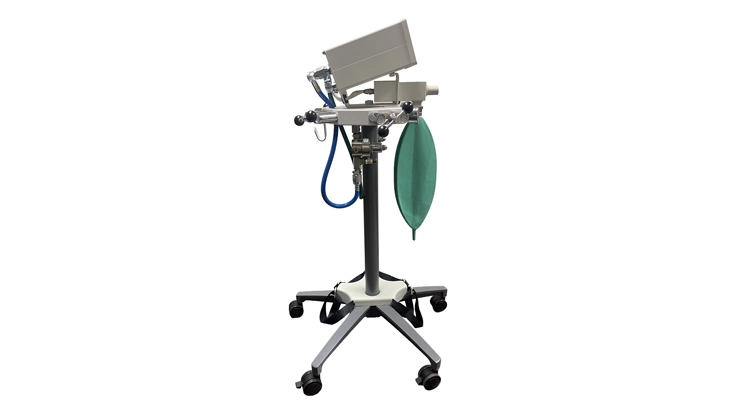

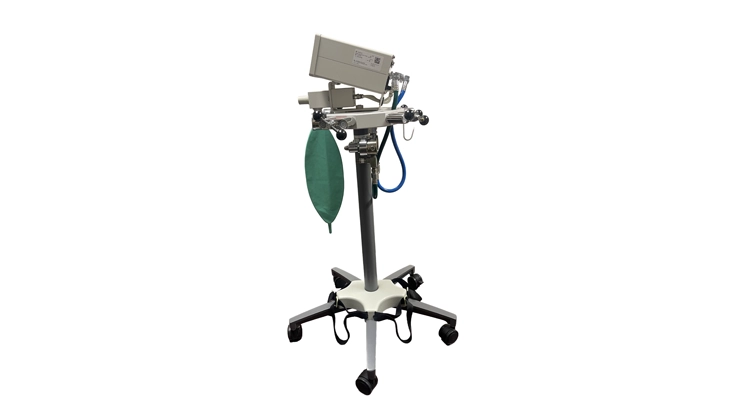

Accutron Digital Ultra Package B 4-Cylinder Portable

The Digital Ultra™ is the right choice for clinicians who prefer to work in a digital environment but want critical parameters displayed both numerically and as electronic flow tubes. The ease of color-coded, fingertip controls is an additional feature of the flowmeter. Its sealed flush surface makes it easy to disinfect or barrier-protect. The unit's design complements aseptic, contemporary operatory environments. Automatic compensation to easily adjust total flow or gas ratio while the other stays constant.

Key Features:

• Both digital and electronic flowtube displays for ease of use.

• Maximum nitrous oxide ratio at 70% for patient safety. Audible and visual alarms to notify of low oxygen. Oxygen fail-safe and flush for additional safety and emergency oxygen resuscitation connector.

• Sealed flush surface makes it easy to disinfect or barrier protect.

• Dimensions (W x H x D): 7 1/2" x 7" x 8 3/4"

• Weight: 6.3 lbs

• Mixed Gas Outlet Diameter: 7/8" Nominal (22 mm); Oxygen Inlet: Male DISS (CGA-1240); Nitrous Oxide Inlet: Male DISS (CGA-1040); Nitrous Oxide Mixed Ratio Range: 0-70%; Oxygen Flow Range: 1.0-9.9 LPM; Nitrous Oxide Flow Range: 0-6.9 LPM; Inlet Pressure (each gas): 50-55 psi

• Resuscitator Connector: Quick Connect (1/4" Imperial); Resuscitator Connector Flow: 100 LPM Oxygen

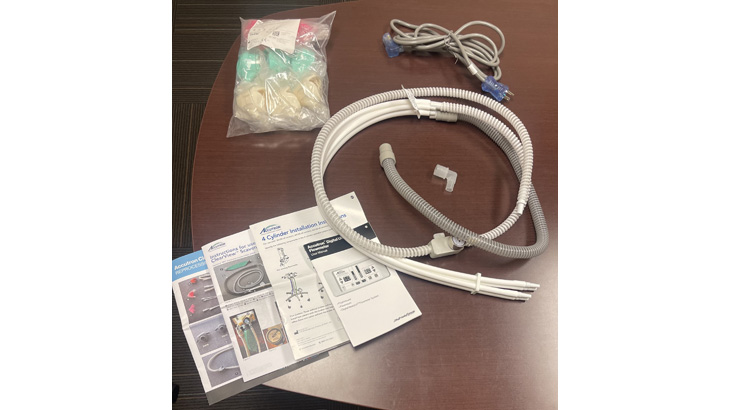

• Power Requirements: 100-240 Volt AC; 50-60 Hz Includes: Digital Ultra™ Flowmeter, 4-Cylinder Portable System, Scavenging Circuit II.

• Customer return. Unit was installed briefly but removed when the facility determined a different model would better meet their needs. Not in original packaging. The unit was never connected to N₂O/O₂ bottles and saw minimal use prior to removal.
